The GR2 grid mount family of LED lighting fixtures from Mojo Illumination provides the perfect lighting solution for higher ceilings in a number of settings including schools, offices, retail, laboratories, and more.

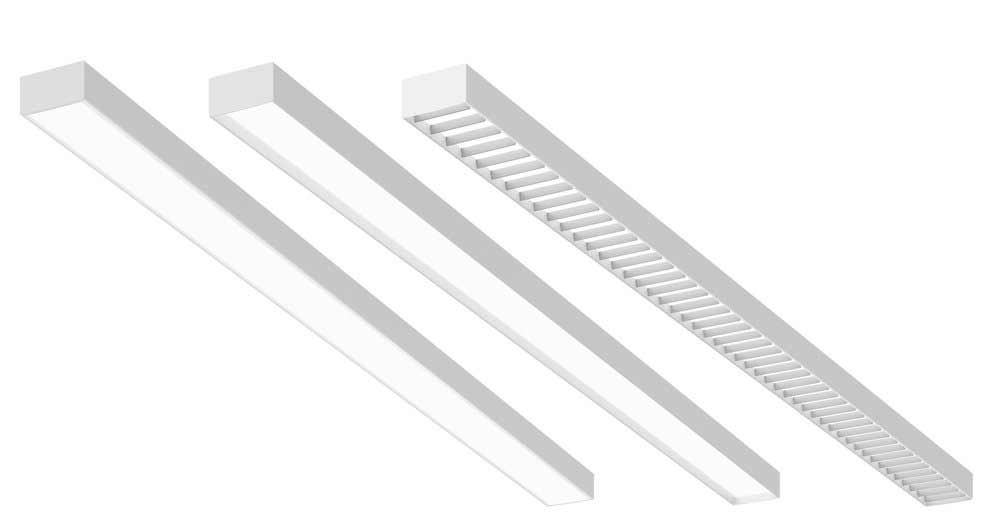

Flush, Regress, Performance and Baffle Optics

They come in 1″ and 2″ widths and are available in surface, suspended, and recessed configurations. Also available are performance, flush, regress, and baffle optical options. They mount easily to any standard grid ceiling and offer flexibility and durability for any job.

2’, 4’, 6’ and 8’ Individual Lengths

GR2S Surface

Slim profile GR2S Surface Mount LED Luminaire adapts seamlessly to standard T-Grid ceiling systems. The nominal 2” aperture minimizes brightness with the choice of Flush Lens, Regress Lens, and Baffle options. Controlled Optics with Diffuse Lambertian or Performance Batwing distributions. Integrated remote driver mounted above grid. Options for controlling up to 4 fixtures with one driver box to minimize installation labor.

Construction

Constructed with die-formed steel and aluminum components. Lenses are extruded high light transmission UV stable acrylic. Available in white, silver, black, or custom powder coat finishes.

Light Source

The light source is comprised of name-brand mid-power LEDs that are thermally engineered to ensure optimal efficacies and 80+ CRI. Luminaire light output is guaranteed to achieve a minimum of 70% luminaire output over 100,000 hours at typical 25 deg. C operating conditions.

Download spec sheet »

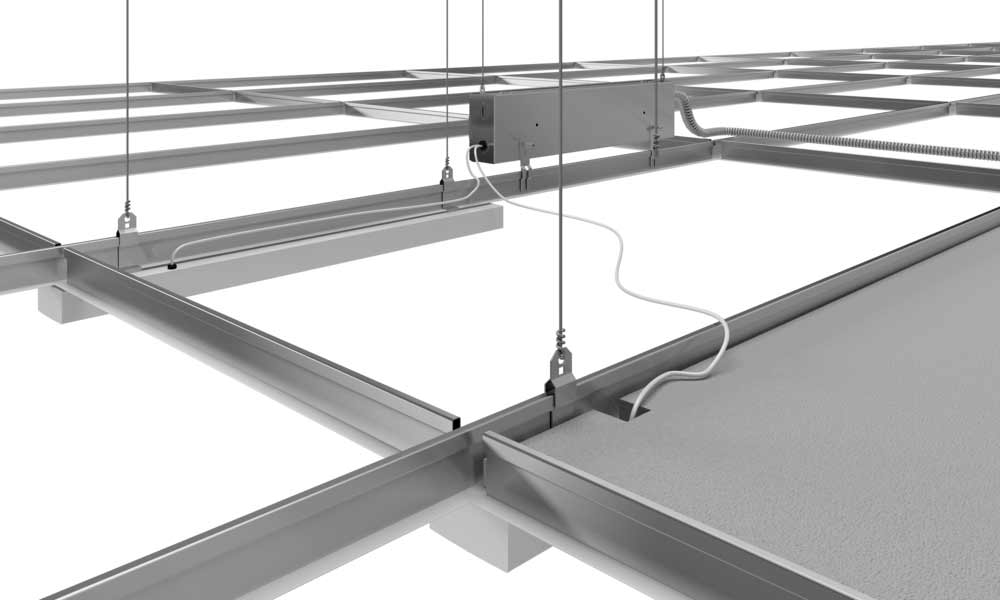

Remote Driver Installation

GR2D Linear

Slim profile GR2D Direct Suspended LED Luminaire adapts seamlessly to standard T-Grid ceiling systems. The nominal 2” aperture minimizes brightness with the choice of Flush Lens, Regress Lens, and Baffle options. Controlled Optics with Diffuse Lambertian or Performance Batwing distributions. Integrated remote driver mounted above grid. Options for controlling up to 4 fixtures with one driver box to minimize installation labor.

Construction

Constructed with die-formed steel and aluminum components. Lenses are extruded high light transmission UV stable acrylic. Available in white, silver, black, or custom powder coat finishes.

Light Source

The light source is comprised of name-brand mid-power LEDs that are thermally engineered to ensure optimal efficacies and 80+ CRI. Luminaire light output is guaranteed to achieve a minimum of 70% luminaire output over 100,000 hours at typical 25 deg. C operating conditions.

Download spec sheet »

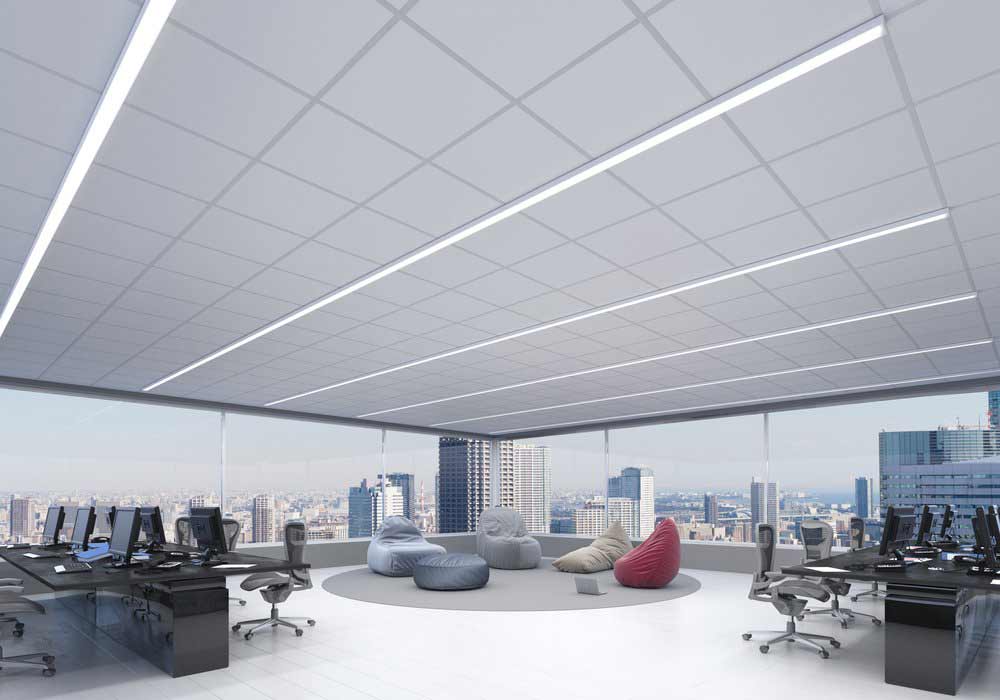

mojo_sharedoffice_minigrid_01e

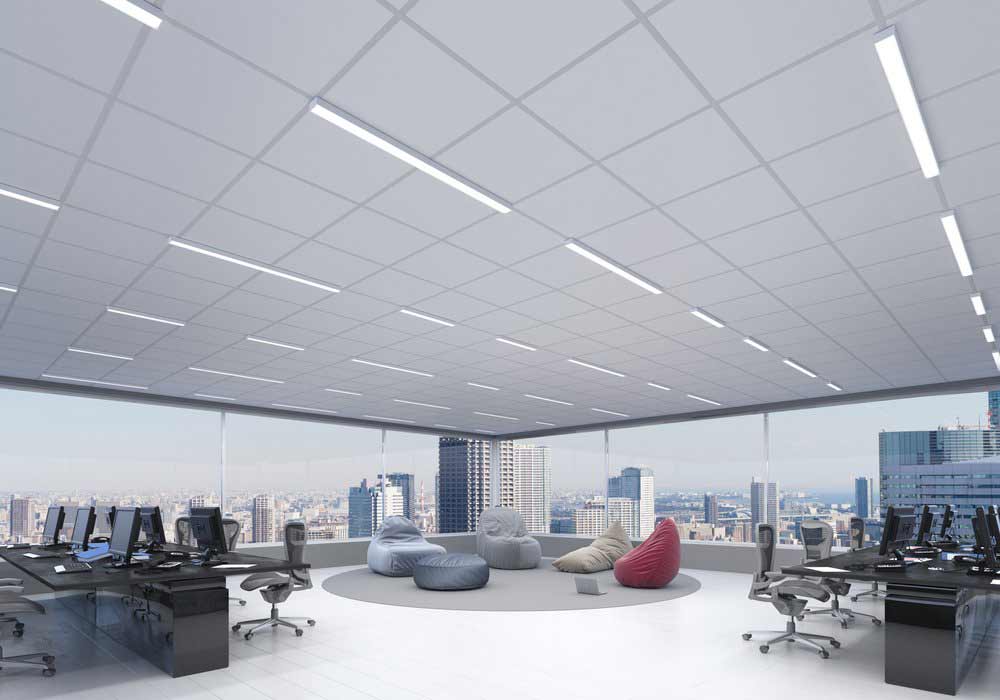

mojo_sharedoffice_minigrid_01f
mojo_sharedoffice_minigrid_ell_pattern

GR2Ri

Narrow aperture GR2Ri recessed direct linear LED Luminaire. Shallow less than 3” IntegralDriverdepthforshallowplenumapplications. Nominal2” aperture minimizes brightness with the choice of Flush Lens, Regress Lens, and Baffle options. Controlled Optics with Diffuse Lambertian or Performance. Easy mounting between ceiling grid or drywall / hard ceiling.

Construction

Housing is constructed out of die-formed steel and aluminum and available in standard white or custom powder coat finishes. Lenses are extruded high light transmission UV stable acrylic.

Light Source

The light source is comprised of mid-power LEDs that are thermally engineered to ensure optimal efficacies over 100 lumens per watt and 80+ CRI. Luminaire light output is guaranteed to achieve a minimum of 70% luminaire output over 100,000 hours at typical 25 deg. C operating conditions. LED components and luminaires are compliant with IESNA LM80.

Download spec sheet »
